Automatic Anti-Corrosion Gallon Jug Bleach Disinfectant Filling and Capping Line

This STRPACK anti-corrosion filling and capping line is specially designed for strongly corrosive liquids and products that cannot contact metal during filling.

It is widely applied in the filling of:

lBleach

lAcid liquids

l84 disinfectant

lToilet cleaner

lCorrosive chemical liquids

lSelected cosmetic liquids with special material requirements

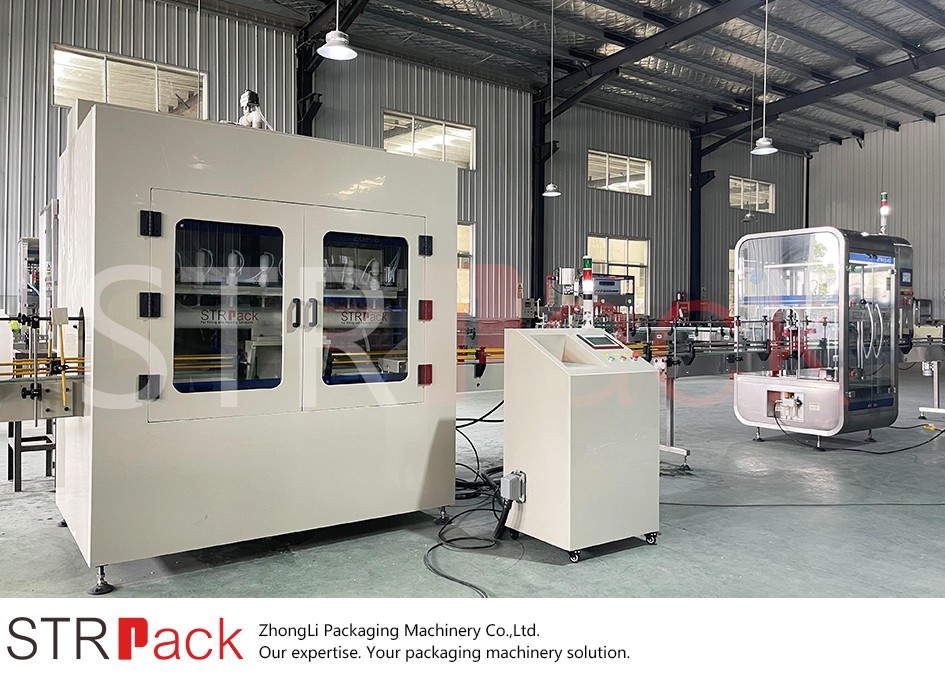

It integrates automatic filling and screw capping, and is suitable for gallon bottles as well as other medium to large volume containers. It ensures stable operation, accurate filling performance, and safe handling of corrosive products. The line features anti-corrosive, non-metallic contact parts to protect product quality, a gravity filling system with electronic weight feedback for precise volume control, and stable automation based on PLC and servo motor control. It is flexible for different bottle sizes and production capacities, and is equipped with reliable components from internationally recognized brands.

Machines Included:

Automatic Anti-Corrosive Gravity Filling Machine with Weight Feedback

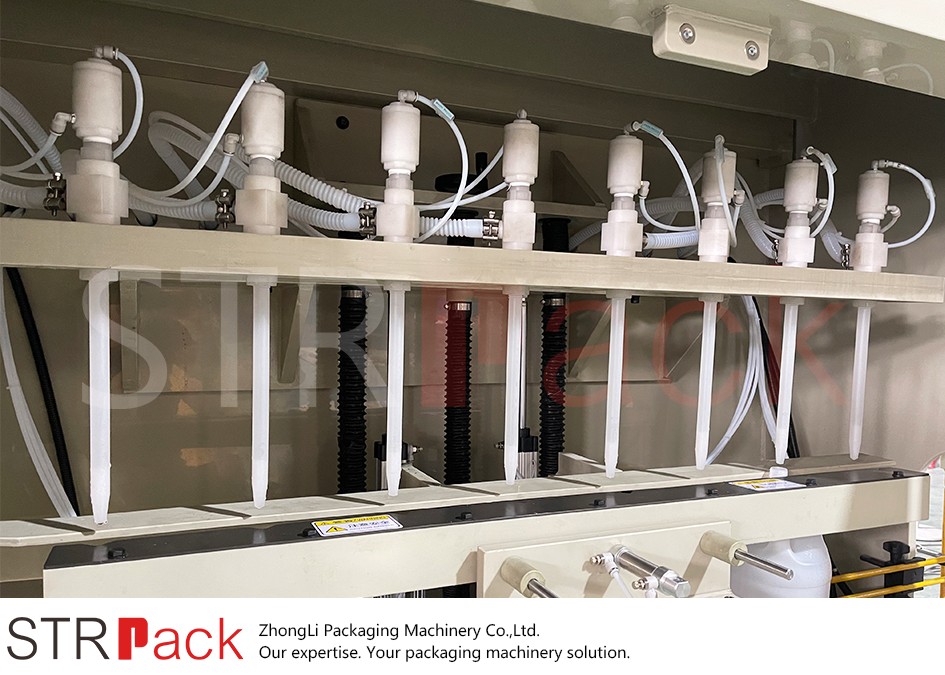

This anti-corrosion gravity filling machine adopts gravity filling combined with electronic weight feedback, allowing operators to conveniently adjust and control filling volume during the debugging process.

All product contact parts are made of anti-corrosive non-metallic materials, ensuring long service life and safe operation when filling corrosive liquids.

Features

lSuitable for strongly corrosive liquids such as bleach, acids, disinfectants, and toilet cleaners

lGravity filling system with electronic balance for precise filling control

lFilling accuracy up to ±1%

lIndependent adjustment for each filling head

lDiving filling nozzle to reduce splashing and foam

lPLC programmable control with photoelectric detection

lNo bottle, no filling function to avoid material waste

lQuick adjustment for different filling volumes

Automatic Servo 4-Roller Screw Capping Machine

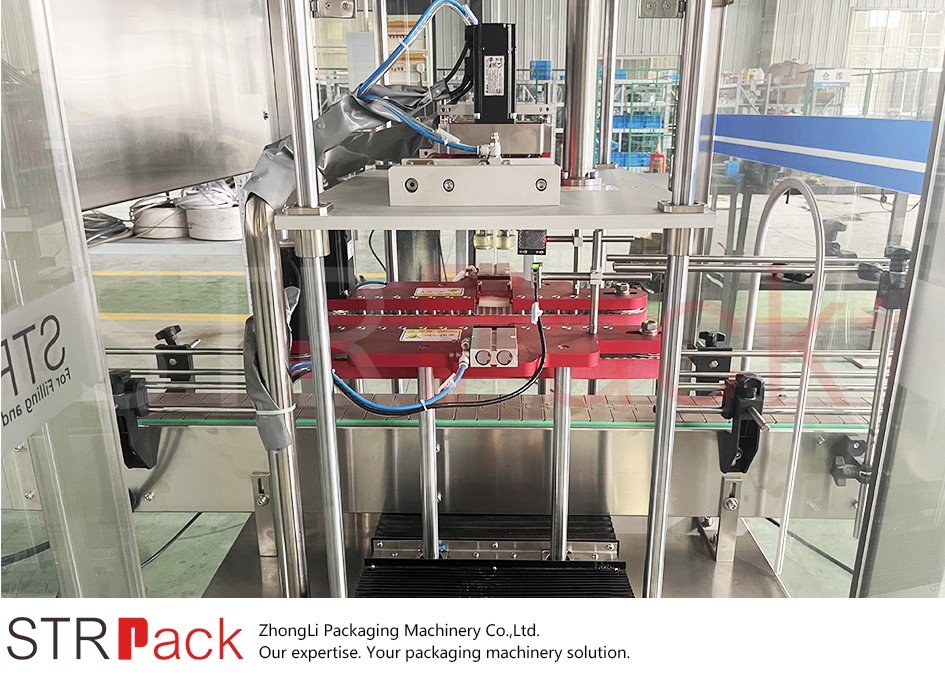

This automatic 4-roller capping machine is designed for screw caps and is fully driven by servo motors, ensuring stable conveying, accurate torque control, and reliable capping performance.

Features

lServo motor driven bottle conveying system

lServo-driven capping head with adjustable torque

lDurable one-time forming bottle holding belt

lStable and accurate cap tightening

lMade of 304 stainless steel

lSuitable for different bottle and cap sizes

lCustom-made solutions available according to bottle and cap specifications

Summary

This anti-corrosion filling and capping line provides a reliable, accurate, and flexible solution for filling and sealing corrosive liquids in gallon bottles and similar containers.

By combining gravity filling with weight feedback and servo-controlled screw capping, the line ensures high efficiency, stable performance, and product safety throughout the packaging process.

If you have any filling or packaging requirements, please feel free to contact us for suggestions and customized solutions.
